Name: Prefabricated Wall Panels – High-Efficiency & Multi-Functional
Availability: InStock
Rating: 4.5 (89 reviews)

Prefabricated Wall Panels – High-Efficiency & Multi-Functional

Short Description

Factory prefabricated, lightweight and high-strength, featuring quick installation, thermal insulation and soundproof properties for construction projects.

Send Email Download

Product Detail

Prefabricated Wall Panels Core Material&Manufacturing
1. Composed of high-quality cement, fly ash, glass fiber and lightweight aggregate, through professional factory precasting and high-pressure curing, ensuring stable quality.
2. Lightweight design reduces building load, while high compressive and bending strength meets engineering safety standards, durable and anti-cracking.
3. Environmentally friendly formula, low carbon emission in production, utilizing recycled materials, conforming to green construction requirements.
Prefabricated Wall Panels Performance Advantages
1. Integrated thermal insulation and soundproof functions, reducing energy consumption for heating and cooling, creating quiet living/working environments.
2. Excellent fire-resistant and moisture-proof performance, non-combustible and mold-proof, suitable for both indoor and semi-outdoor spaces.
3. Precisely processed dimensions, smooth surface and flat edges, reducing on-site trimming work and ensuring construction accuracy.

Prefabricated Wall Panels Installation & Application
1. Factory prefabrication realizes "plug-and-play" installation, no on-site casting, shortening construction period by 50% compared to traditional walls.
2. Lightweight and easy to transport, compatible with bolt, slot or dry-hanging installation, reducing labor and equipment costs.
3. Wide application: Residential buildings (high-rises, villas, prefabricated houses), commercial projects (offices, hotels, shopping malls) and public facilities (schools, hospitals, stadiums), adapting to modular construction needs.
Important Attributes

- Material: Steel, Rock Wool, PIR (Polyisocyanurate), PU (Polyurethane), EPS (Expanded Polystyrene)

- Panel Material: Metal

- Features: Waterproof, Flame-retardant

- Application Scenarios: Office Buildings, Exterior Walls, Roofs, Prefabricated Houses, Cold Storage Rooms, Hotels, Villas, Apartments, Hospitals, Schools, Warehouses, Supermarkets, Countryside, Outdoor

- Design Style: Minimalist and Eco-friendly

- Environmental Protection: Eco-friendly

- Quality Assurance Service: 5 years

- Engineering Solution Capabilities: Graphic Design, 3D Modeling Design, Overall Solutions, Cross-category Goods Assortment

- Length: Customizable

- After-sales Service: Online Technical Support, On-site Installation, On-site Guidance, On-site Inspection

- Place of Origin: SHN (Shandong, China)

- Brand: LH

- Model: LHQK-2

- Application: Buildings

- MOQ (Minimum Order Quantity): 100 square meters

- Color: RAL Colors

- Core Material Thickness: 30-150mm

- Surface Material: Color Steel/Aluminum/Stainless Steel

- Effective Width: 950mm/1000mm/1120mm

- Steel Thickness: 0.4-0.8mm

- Recommended Coating: PVDF (Polyvinylidene Fluoride)/SMP (Silicone Modified Polyester)/HDP (High Durability Polyester)/PE (Polyester)

- Service Life: Over 20 years

- Advantages: Fireproof + Waterproof

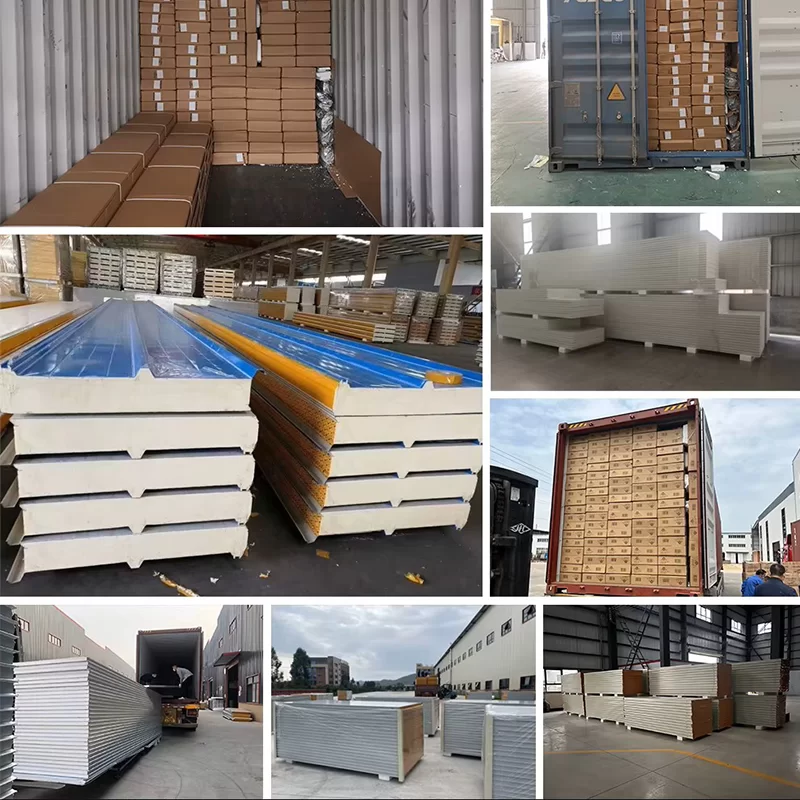

Packaging and Shipping Information
- Sales Unit: Single Product
- Single Package Size: 100X2X100 cm
- Single Product Gross Weight: 8.000 kg
Delivery Time & Product Specifications

Quantity (square meters) 1 – 100 101 – 1000 101 – 1000 1001 – 2000 > 2000

Eastern Time (days) 8 28 28 28 To Be Determined

Facing Material Length (mm) Length (mm)<12,000>

Width (mm) Width (mm) 950-1150 950-1150 950-1150

Thickness (mm) Thickness (mm) Coated Steel: 0.2-0.8; Aluminum: 0.4-1; Stainless Steel: 0.2-0.7 Coated Steel: 0.2-0.8; Aluminum: 0.4-1; Stainless Steel: 0.2-0.7 Coated Steel: 0.2-0.8; Aluminum: 0.4-1; Stainless Steel: 0.2-0.7

Coating Coating PVDF/HDP/PE PVDF/HDP/PE PVDF/HDP/PE

Insulation Core Core Material Core Material PU/PIR/EPS/Rock Wool PU/PIR/EPS/Rock Wool PU/PIR/EPS/Rock Wool

Density (kg/m³) Density (kg/m³) PU/PIR: 35-42; EPS: 8-20; Rock Wool: 80-120 PU/PIR: 35-42; EPS: 8-20; Rock Wool: 80-120 PU/PIR: 35-42; EPS: 8-20; Rock Wool: 80-120

Thickness (mm) Thickness (mm) 30-200 30-200 30-200

Thermal Conductivity (w/m·k) Thermal Conductivity (w/m·k) PU: ≤ 0.023; PIR: ≤ 0.023; EPS: ≤ 0.035; Rock Wool: ≤ 0.033 PU: ≤ 0.023; PIR: ≤ 0.023; EPS: ≤ 0.035; Rock Wool: ≤ 0.033 PU: ≤ 0.023; PIR: ≤ 0.023; EPS: ≤ 0.035; Rock Wool: ≤ 0.033

Fire Rating Fire Rating PU: B2; PIR: B1; Rock Wool: A PU: B2; PIR: B1; Rock Wool: A PU: B2; PIR: B1; Rock Wool: A

Length(mm) Length(mm)<12,000>

Width(mm) Width(mm) PU/PIR Wall Panels: 1000/1120; Roof Panels: 1000 EPS Wall Panels: 950/1150; Roof Panels: 960 Rock Wool Wall Panels: 950/1000; Roof Panels: 950/1000 PU/PIR Wall Panels: 1000/1120; Roof Panels: 1000 EPS Wall Panels: 950/1150; Roof Panels: 960 Rock Wool Wall Panels: 950/1000; Roof Panels: 950/1000 PU/PIR Wall Panels: 1000/1120; Roof Panels: 1000 EPS Wall Panels: 950/1150; Roof Panels: 960 Rock Wool Wall Panels: 950/1000; Roof Panels: 950/1000

Others Joint Joint Concealed Fasteners/Exposed Fasteners Concealed Fasteners/Exposed Fasteners Concealed Fasteners/Exposed Fasteners

Surface Texture Surface Texture Flat/Wide Ribs/Small Corrugations Flat/Wide Ribs/Small Corrugations Flat/Wide Ribs/Small Corrugations

Manufacturing Manufacturing Produced by Continuous Production Line Produced by Continuous Production Line Produced by Continuous Production Line
